IPLUS® and Neutrak®: High performance integrated neutron dosimeter

beta
gamma
neutrons
X

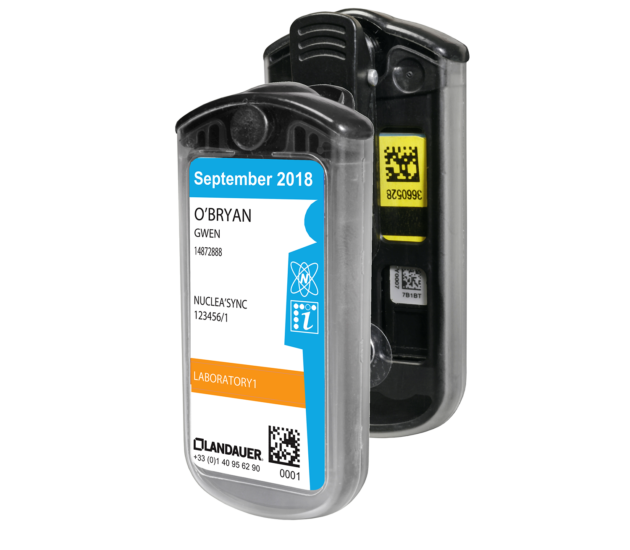

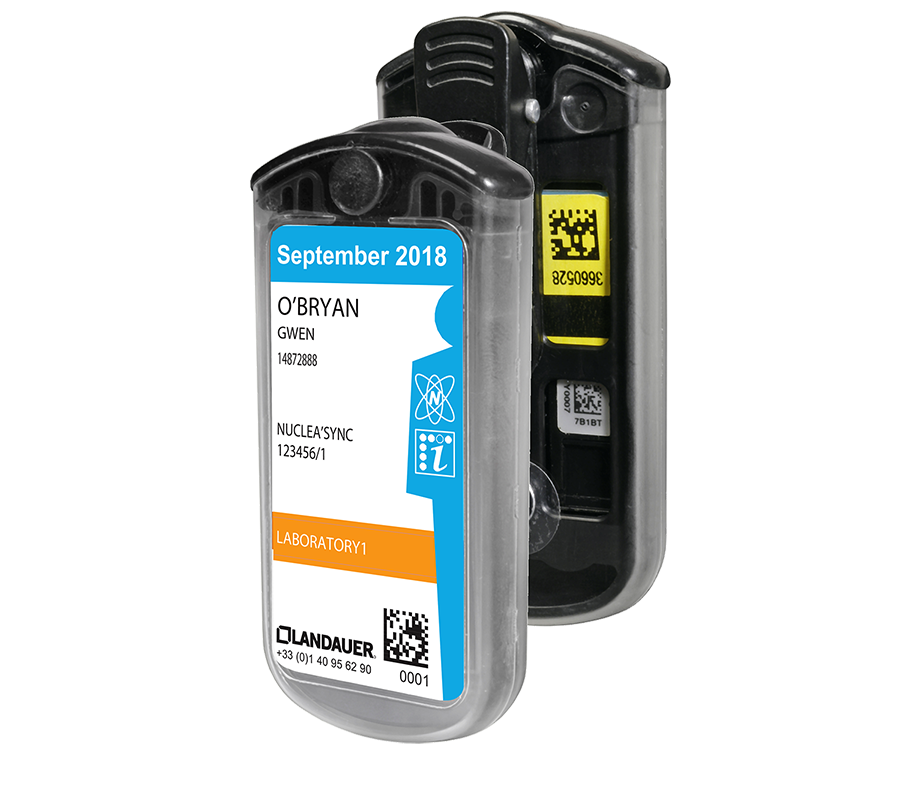

LANDAUER® provides you with IPLUS & Neutrak, a unique dosimeter incorporating the Neutrak detector in the IPLUS  badge. The dosimeter is used to measure X-rays, beta and gamma radiation, as well as thermal, intermediate and fast neutrons.

Provide your team with a two-in-one dosimeter:

  • the lightest and most compact dosimeter on the market (17 g, 35 x 74 x 10 mm)
  • the only certified neutron dosimeter in France covering the energy range of thermal neutrons at 16.5 MeV
  • tested by the National Physical Laboratory (NPL), an accredited and independent laboratory in the UK
  • easy to wear and ready for use at the chest, wrist or ankle
  • compliant with EN 62387:2016 (IPLUS) and ISO 21909-1:2015 (Neutrak) standards
Download the technical file

Dosimètre
Technical specifications

IPLUS with Neutrak complies with the following standards:

  • EN 62387:2016 Radiation protection instrumentation – Passive Integrating Dosimetry Systems For Environmental And Personal Monitoring of photon and beta radiation
  • ISO 21909-1:2015 – Passive neutron dosimetry systems – Performance and test requirements for personal dosimetry

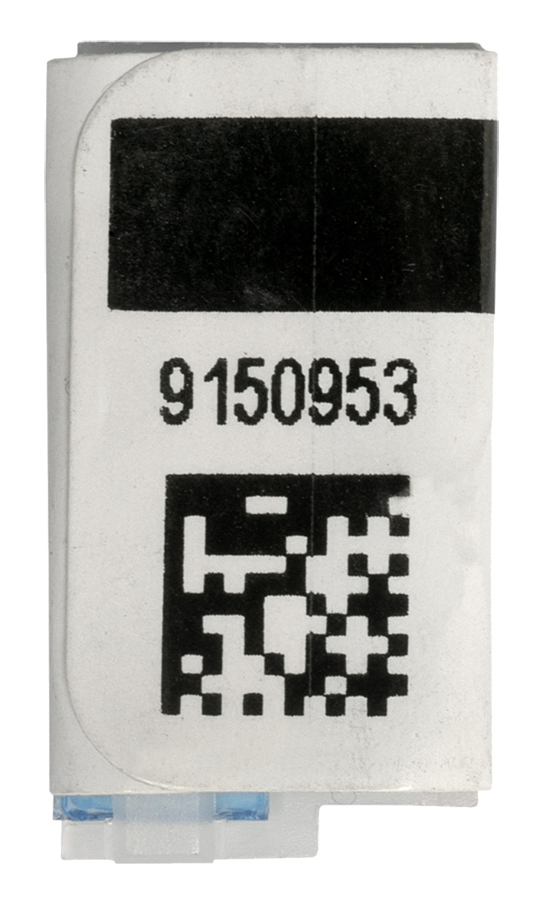

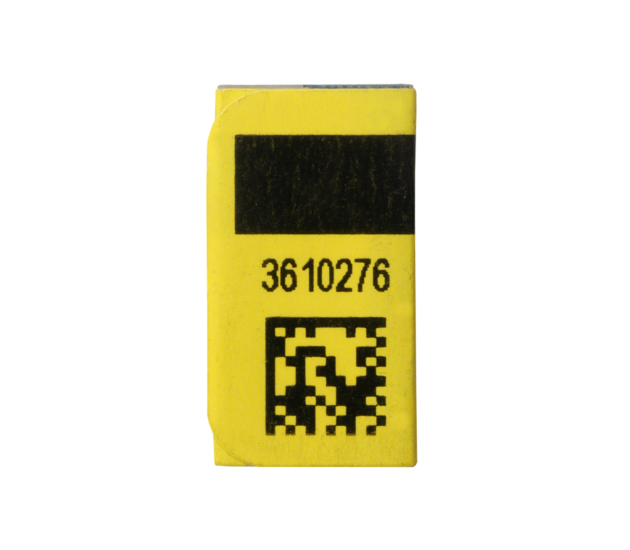

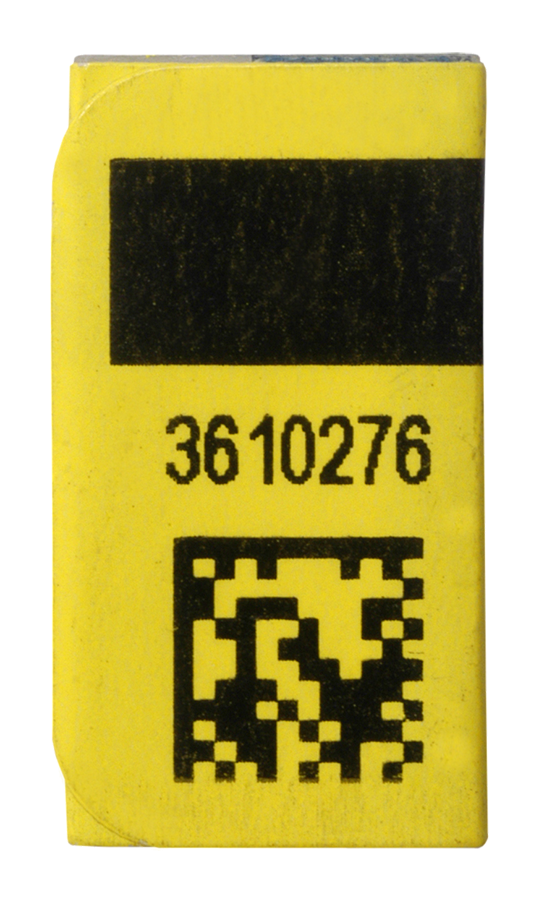

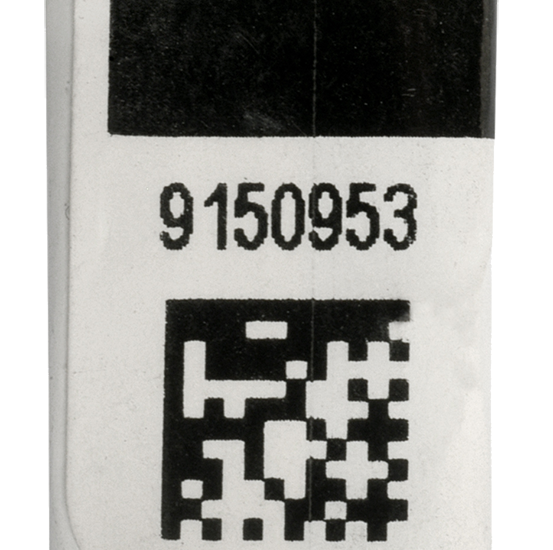

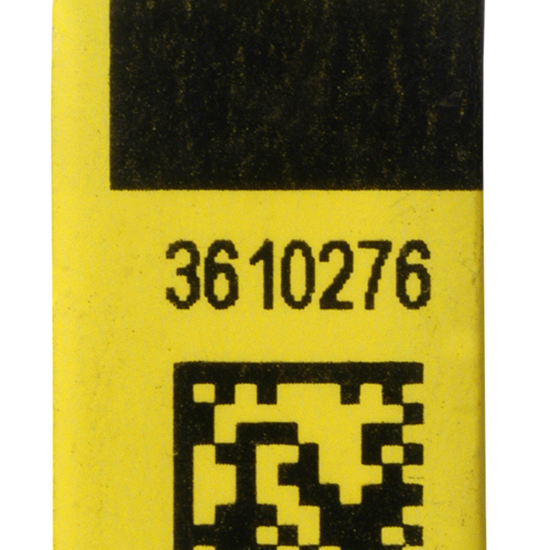

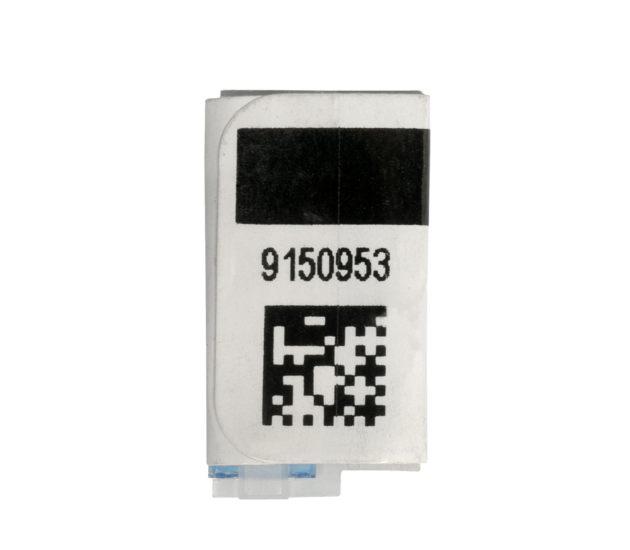

Dosimeter IPLUS Neutrak-T Neutrak -J
Manufacturer LANDAUER (designed and manufactured in our laboratory in France)
Type of radiation measured Photons (X and gamma radiation) and beta Neutrons
Dose equivalent Hp(10) and  Hp(0,07) Hp(10) chest and wrist
Detector GN, new filter holder housing CR-39 ( PADC: poly-allyl diglycol carbonate)
Technology Carbon-doped aluminium oxide, Al2O3:C SSNTD (solid-state nuclear track detector)
Minimum reporting value 0.05 mSv 0.1 mSv
Converter N/A Polyethylene and Teflon® doped with Boron 10 Polyethylene
Linearity response 0.05 mSv to 10 Sv – Standard deviation < 5 % 0.1 to 10 mSv (thermal neutron) 0.1 to 250 mSv (144 keV to 16.5 MeV)
0.1 to 250 mSv (from 144 keV to 16.5 MeV)
Standard deviation on linearity response greater than 5% greater than 8%
Energy response and related angular response Photons Hp(10) : ± 60° from 15 keV to 6 MeV
Photon : Hp(0,07) : ± 60° from 15 keV to 1.33 MeV
Thermal range and from 144 keV to 16.5 MeV from 144 keV to 16.5 MeV
with neutron flux from 0° to ±60 ° with neutron flux from 0° to ±60 °
Beta:  ± 45° from 0.24 to 0.8 MeV (Emean)
